set terminal postscript eps enhanced color
set linestyle 1 lt 2 lw 10
set linestyle 2 lt 1 lw 10
set linestyle 3 lt 3 lw 10
set tmargin 1
set border 3
set boxwidth 0.2
set key right top
set ticscale 0
set xrange [ -1 : 26 ]
set xlabel "Dosimetry Reactions" 0,7

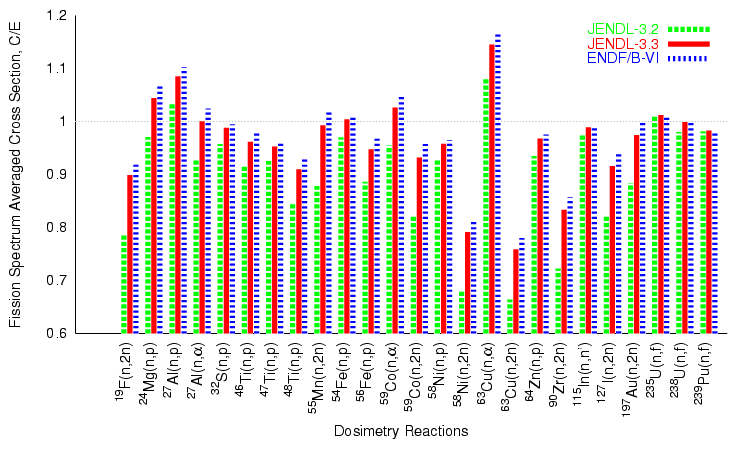

set ylabel "Fission Spectrum Averaged Cross Section, C/E"
set xtics nomirror rotate (
"^{19}F(n,2n)" 1,
"^{24}Mg(n,p)" 2,
"^{27}Al(n,p)" 3,
"^{27}Al(n,{/Symbol a})" 4,
"^{32}S(n,p)" 5,
"^{46}Ti(n,p)" 6,
"^{47}Ti(n,p)" 7,
"^{48}Ti(n,p)" 8,
"^{55}Mn(n,2n)" 9,
"^{54}Fe(n,p)" 10,
"^{56}Fe(n,p)" 11,
"^{59}Co(n,{/Symbol a})" 12,
"^{59}Co(n,2n)" 13,
"^{58}Ni(n,p)" 14,
"^{58}Ni(n,2n)" 15,
"^{63}Cu(n,{/Symbol a})" 16,
"^{63}Cu(n,2n)" 17,
"^{64}Zn(n,p)" 18,
"^{90}Zr(n,2n)" 19,
"^{115}In(n,n')" 20,
"^{127}I(n,2n)" 21,
"^{197}Au(n,2n)" 22,
"^{235}U(n,f)" 23,
"^{238}U(n,f)" 24,
"^{239}Pu(n,f)" 25)
set ytics nomirror
set output "integ.eps"
plot 1 noti w l 0,
"integ.dat" usi ($1):3 ti "JENDL-3.2" w imp ls 1,
"integ.dat" usi ($1+0.25):4 ti "JENDL-3.3" w imp ls 2,
"integ.dat" usi ($1+0.50):5 ti "ENDF/B-VI" w imp ls 3
