About Polar Coordinate

to plot data in the 2-dimensional polar coordinate.

In the polar coordinate the data to be plotted are similar to the
rectangular coordinate — (X,Y), but the data represent X=”angle” and
Y=”radius”. The data format is the same as the usual two-dim. data. The default unit of angle
is radian and the range is 0 to 2*pi. If you want to use a degree
unit, set angles degrees.

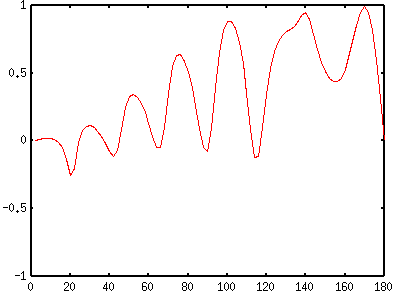

Let’s think about the following two-dimensional data,
which are shown in the rectangular coordinate, X range is
0 to 180 degrees, Y range is -1 to 1.

We plot this in the polar coordinate.

gnuplot> set polar

dummy variable is t for curves
gnuplot> set angles degrees
gnuplot> plot "datafile.dat" with lines

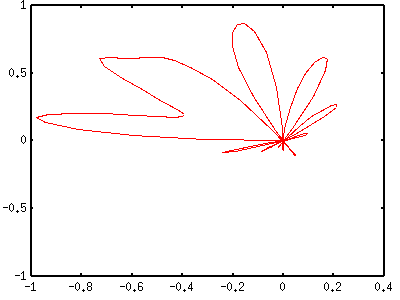

Now, adjust the ranges of X and Y, and make the graph square.

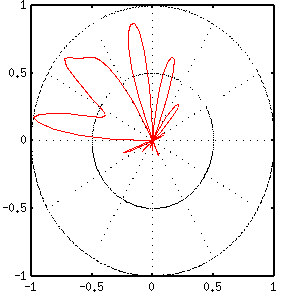

This is a likely appearance for the polar coordinate plot.

gnuplot> set size square
gnuplot> set xrange [-1:1]
gnuplot> set yrange [-1:1]
gnuplot> replot

to draw lines from data-points to the origin.

In the above example, each (angle, radius) point

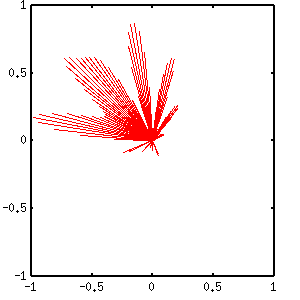

is connected by a piecewise line. To draw lines from the origin
to each data point, use with impules option.

gnuplot> plot "datafile.dat" with impulses

to draw grids.

There are two kinds of grid in the polar coordinate. The first one
is to draw them at the major tics, which is controlled by the
set grid command. This is the same as the usual rectangular
coordinate plot. The other one is circles and radial lines which
are drawn by the set grid polar
angle command. The angle defines the radial
lines interval (default 30 degrees).

gnuplot> set grid polar

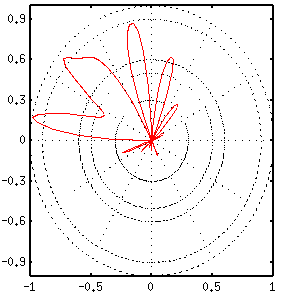

The circular grids depend on both the major tics of X and Y axes.
In the above figure tics for X and Y are 0.5, so that the circles
are drawn at the interval of 0.5. If the major tics are changed as
follows, the circular grids are drawn at 0.3,0.5,0.6,0.9, and 1.0.

gnuplot> set xtics 0.5
gnuplot> set ytics 0.3
