Spherical Harmonics

• Parametric
• Spherical harmonics
• Various quantum numbers
• Deformed nucleus
  [ver.4]

Parametric Expression

There are two ways to display a 3-dimensional function. The
first one is to use variables x,y , and define z values
as z=f(x,y). The other method is to define a 3-D function by two parameters
u,v as :

x = f(u,v)
y = g(u,v)
z = h(u,v)

When your function f(x,y) is not so complicated, the former method
is easier.

gnuplot> f(x,y)=sin(x)*cos(y)
gnuplot> splot f(x,y)

However a function defined in the polar coordinate is hard to
express in a form “z=”, so that we need to use a parametric
representation. For example, a sphere of unit radius is expressed as
x^2+y^2+z^2=1, then one has to define two functions (z > 0 and z
< 0), namely z=sqrt(1-x*x-y*y) and z = -sqrt(1-x*x-y*y).

The sphere can be expressed with two parameters u and
v those define the condition that the radius is

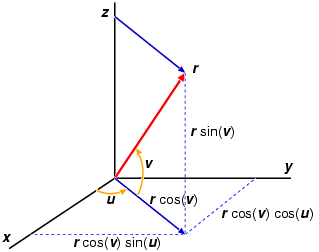

constant. Suppose u and v are the angles as follows,
and alter those values from zero to 360 under the
condition that the radius r does not change.

With the angles u,v and radius r, an arbitrary
coordinate x,y,z can be expressed as follows:

x = r*cos(u)*cos(v)
y = r*sin(u)*cos(v)
z = r*sin(v)

The sphere can be defined in the polar coordinate so as that
the radius r=a=constant, then one can get the
sphere when the parameter r is replaced by a constant value.
When a=1, the functions above represent the sphere of unit radius.

x = cos(u)*cos(v)
y = sin(u)*cos(v)
z = sin(v)

Therefore to draw a 3-D sphere with gnuplot:

gnuplot> set parametric

dummy variable is t for curves, u/v for surfaces
gnuplot> set angle degree
gnuplot> set urange [0:360]
gnuplot> set vrange [-90:90]
gnuplot> set isosample 72,36
gnuplot> set ticslevel 0
gnuplot> set size 0.7,1.0
gnuplot> a=1
gnuplot> splot a*cos(u)*cos(v),a*sin(u)*cos(v),a*sin(v)

The default angle unit is radian. The second line set angle
degree changes the angle unit into degree. The third and
fourth lines tell gnuplot to change the parameters u,v from
zero to 360 deg. We changed the aspect ratio by the set size
command in order to make the sphere be spherical on your
screen (otherwise the drawing becomes like a pancake).

The roughness of wire-frame can be controlled by set isosample
m,n . The larger the number is, the finer the mesh becomes.
The number m is for the parameter u, while n
is for v.

The functions used above can be more in a convenient form when one
defines functions:

gnuplot> fx(u,v)=cos(u)*cos(v)
gnuplot> fy(u,v)=sin(u)*cos(v)
gnuplot> fz(v)=sin(v)
gnuplot> splot a*fx(u,v),a*fy(u,v),a*fz(v)
