About 3-Dimensional Plot (No.2)

How do I draw a 3-dim. grid graph from 3-Dim scattered data

Suppose your data to be plotted are 3-dimensinonal scattered data
(x,y,z) with arbitrary order. With the splot command,
gnuplot generates points or lines in a 3-dim. space.

 # X          Y         Z 9.862e-01 -8.062e-02   0.001 9.786e-01 -1.134e-01   0.002 9.720e-01 -1.382e-01   0.003 ..... -1.849e-01 -2.165e-01  80.000 -2.412e-01 -1.301e-01  90.000 -2.611e-01 -4.825e-02 100.000

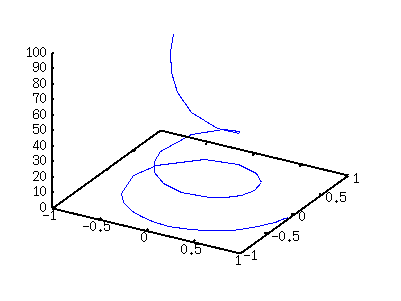

 gnuplot> set xrange [-1:1] gnuplot> set yrange [-1:1] gnuplot> set ticslevel 0 gnuplot> splot "datafile.dat" u 1:2:3 with lines

In order to generate a 3-dim. grid graph from those data, use
set dgrid3d. Height of each mesh is determined
automatically by a weighted average of the data inside the grid.
The number of mesh in the X- and Y-directions can be specified by
set dgrid3d x-mesh, y-mash.

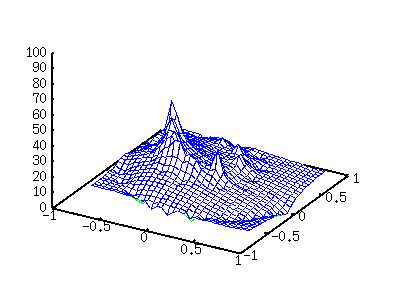

 gnuplot> set dgrid3d 30,30 gnuplot> set hidden3d gnuplot> splot "datafile.dat" u 1:2:3 with lines
