3-Dim Plot with a Color-Map (pm3d)

How do I draw a colored 3D figure ?

[ver.4] ONLY !

Gnuplot draws 3D figures with lines and / or points, in addition,
ver.3.8 or 4.0 allows you to draw a color-mapped 3D figure by setting
pm3d . The figure is shown on your screen as well as
PostScript or some image formats like PNG/JPG.

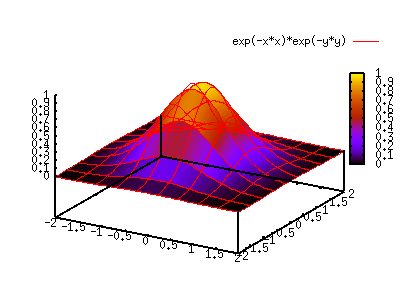

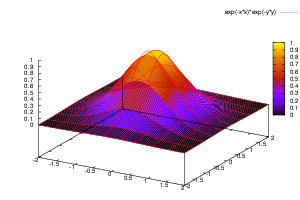

 gnuplot> set xrange [-2:2] gnuplot> set yrange [-2:2] gnuplot> set pm3d gnuplot> splot exp(-x*x)*exp(-y*y)

You can choose color or gray-scale by the terminal option of
color/monochrome . The gray-scale figure can be drawn
by set palette gray , but the surface grid lines are
still colored in this case. The following two examples are
for the PostScript terminal.

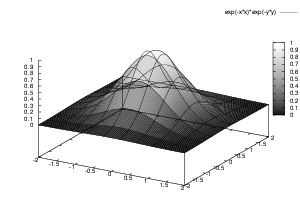

 gnuplot> set term postscript eps enhanced color gnuplot> set output "color.eps" gnuplot> replot gnuplot> set term postscript eps enhanced monochrome gnuplot> set output "mono.eps" gnuplot> replot

I want to draw colors for contours.

[ver.4] ONLY !

A contour map of gnuplot is shown by lines. The colored contour by pm3d
is something like a colored density distribution, which means,
each piece of colored surface is mapped on the bottom/top plain.
To show this on the bottom, add the at b option
to the set pm3d command.

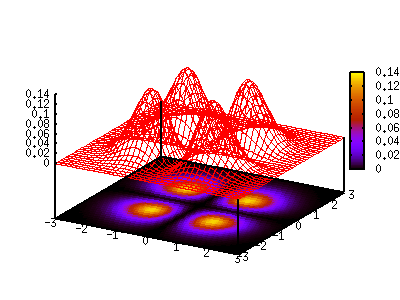

 gnuplot> set pm3d at b gnuplot> set ticslevel 0.8 gnuplot> set isosample 40,40 gnuplot> splot x*x*exp(-x*x)*y*y*exp(-y*y)

With pm3d, it is very easy to see the bottom surface in the 2D plot.

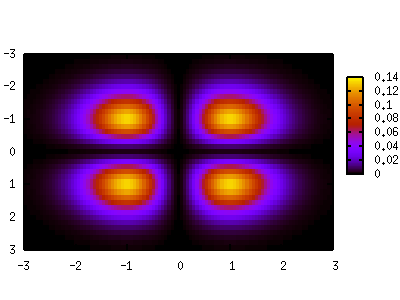

 gnuplot> set pm3d map gnuplot> splot x*x*exp(-x*x)*y*y*exp(-y*y)

Pseudo 3D Bar graph

Since gnuplot cannot draw a 3D-bar graph, we need a little trick
to make it. Suppose we have the following 3D data.

 # X     Y    Z 0.0   0.0  2.0 0.0   1.0  3.5 1.0   0.0  1.0 1.0   1.0  3.0

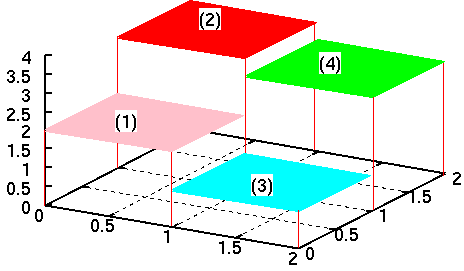

The first line means Z=2 when 0< X <1, 0< Y <1, and
it corresponds to the area (1) in the next figure. The data file does not
contain maximal values. The ranges of X and Y are implicitly
assumed as 1< Y <2, 1< Y <2, and the Z value is 3.0.
We will make a 3D histgram like this.

Now we expand the data with some programs/tools. See the figure
above at X=0, the Y values are step function changing Y=2.0, 2.0, 3.5,
and 3.5. This step function is expressed as one line in a 3D
space. Same can be consider for X=1 and X=2.

 # X     Y    Z 0.0   0.0  2.0 0.0   1.0  2.0 0.0   1.0  3.5 0.0   2.0  3.5  1.0   0.0  2.0 1.0   1.0  2.0 1.0   1.0  3.5 1.0   2.0  3.5  1.0   0.0  1.0 1.0   1.0  1.0 1.0   1.0  3.0 1.0   2.0  3.0  2.0   0.0  1.0 2.0   1.0  1.0 2.0   1.0  3.0 2.0   2.0  3.0

Once you prepare your data in such a way, we just depict
them with lines. A program to process the data can be ….
your homework.

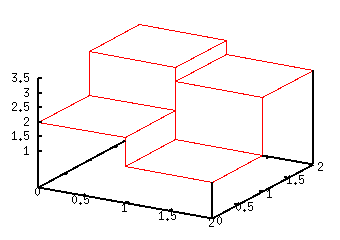

 gnuplot> set hidden3d gnuplot> splot "test.dat" with lines

[ver.4] ONLY !

When your gnuplot is ver.4, a funcy figure can be made with pm3d.

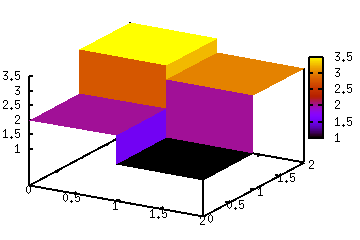

 gnuplot> set pm3d gnuplot> splot "test.dat" with pm3d
